Rangkaian Car Regulator Converter

This is car regulator 12 VDC to 9 VDC converters side for audio, playstation,DVD,etc... The regulator designed for 12DC to 9DC converters that we bring to our design circuit . They are all effective in Switch Mode Power Supplies regulated output. We have developed a series of DC-DC power supply models ranging from 1 watt to 500 watts, which we incorporated into the new controller of DC converters. We are also developing new areas whenever necessary to meet customer requirements. We can provide some custom products that changes on the following products and fully custom DC-DC, new products, such as DC Battery Backup Power Supplies.

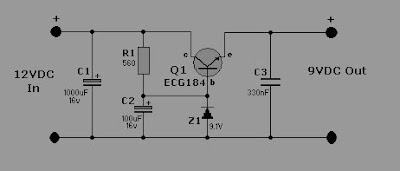

car regulator converter
Assemble the circuit on a good quality PCB.
The Q1 ECG184 must be mounted on heat sinks.

list Componet

C1: 1000uf/16v
C2: 100uf/16v
C3: 330nf
R1: 560 ohm, Resistor 1 watt
Z1: 9.1 Volt, diode zener
Q1: EGC184.
