Power supplay (Adapter)

12 volt dual voltage of adapter

  • Transformator 18v-CT (min)
  • Capasitor 35v
  • Bridge Rectifier 2 Ampere /100 v
  • c4, c5 Ceramic

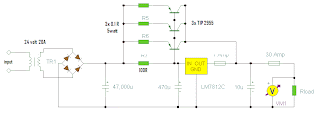

12 VOLT 20 Ampere of adapter

Using a single 7812 IC voltage regulator and multiple outboard pass transistors, this power supply can deliver output load currents of up to 20 amps.
