Rangkaian Power Amplifier Berbasis IC LM12

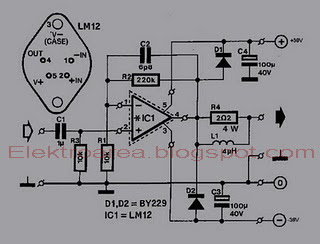

This is 80Watt power amplifier OCL circuit using devices pillar is the integrated circuit LM12. This interesting routes many good bass and treble alive. If a friend is the CD therefore has a beautiful voice and Pre Tone Control is good that some will take something very magical. Importantly should choose Power supply source, which has been fairly high voltage class 38Vdc GND 38V-3A is the current low level. To decorate the fines resulting from the size finely R4 2 ohm/4W Idle current about 30mA, or with the whole center just before. Almost forgotten friends should choose the material is good, good, especially IC LM12 and Transistor everyone.
Layout IC LM12
The LM12 is a power op amp capable of driving ±25V at ±10A while operating from ±30V supplies. The monolithic IC can deliver 80W of sine wave power into a 4Ω load with 0.01% distortion. Power bandwidth is 60 kHz. Further, a peak dissipation capability of 800W allows it to handle reactive loads such as transducers, actuators or small motors without derating. Important features include:
- input protection
- controlled turn on
- thermal limiting
- overvoltage shutdown
- output-current limiting
- dynamic safe-area protection
The IC delivers ±10A output current at any output voltage yet is completely protected against overloads, including shorts to the supplies. The dynamic safe-area protection is provided by instantaneous peak-temperature limiting within the power transistor array.
The turn-on characteristics are controlled by keeping the output open-circuited until the total supply voltage reaches 14V. The output is also opened as the case temperature exceeds 150°C or as the supply voltage approaches the BVCEO of the output transistors. The IC withstands overvoltages to 80V.
The turn-on characteristics are controlled by keeping the output open-circuited until the total supply voltage reaches 14V. The output is also opened as the case temperature exceeds 150°C or as the supply voltage approaches the BVCEO of the output transistors. The IC withstands overvoltages to 80V.
